0.50mm (0.0197") Pitch PCB Connector - Flecto

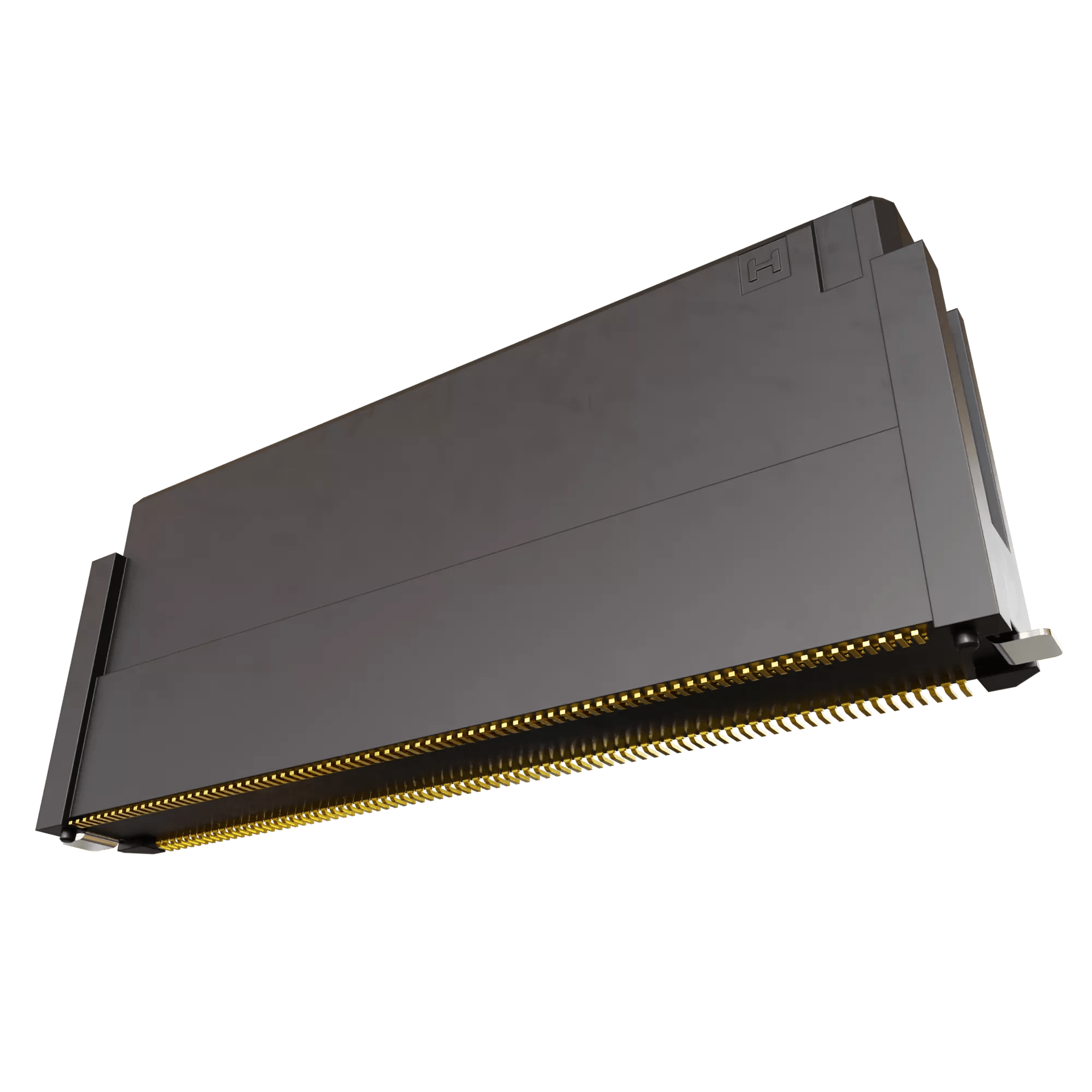

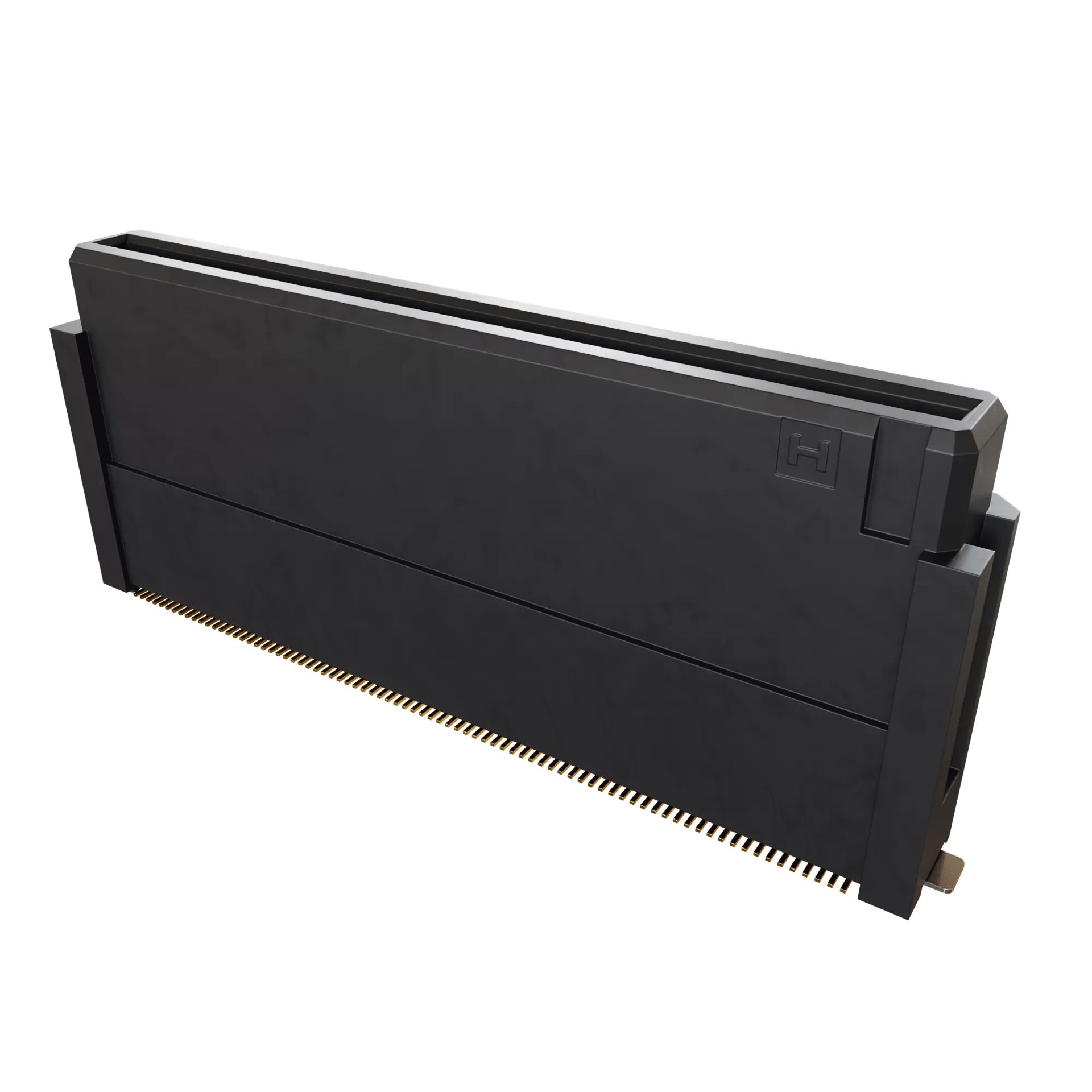

Double Row vertical board-to-board, surface mount receptacle connector, 18.45mm high - 160 contacts (80+80). Location pegs, surface mount hold-down retaining tabs for additional solder strength.
High-speed connection with a data rate up to 4GHz, 8Gb/s. Compatible with flexible male connectors that accommodate ±0.5mm of movement in X, Y and Z axes.
Gold finish on contact area and termination, tin finish on solder hold-down tab. Packaged in Tape & Reel with pick & place tape.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
160
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
0.4A max per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
LCP
Base Material of Contact:
Copper Alloy
Flammability Rating:
Black
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
Gold
Housing Colour:
UL94V-0
Dimensions
Contact Pitch:
0.50mm (0.020")
Weight:
4.45g
Dimensions:
46.85 x 6.20 x 18.85
Height of Connector above PCB:
18.40mm
Downloads
Product Datasheet - Flecto (BBi)
Product Training Module - FLECTO Floating Connectors
C057XX Component Specification - FLECTO Floating Connectors (0.50mm + 0.635mm + 0.80mm pitch)
Technical Drawing / Datasheet - F10-10XXXX45R.pdf
Outgassing data for Harwin products (plastics)
RoHS - F10-10216045R
Material composition for F10-102XXX45R series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
