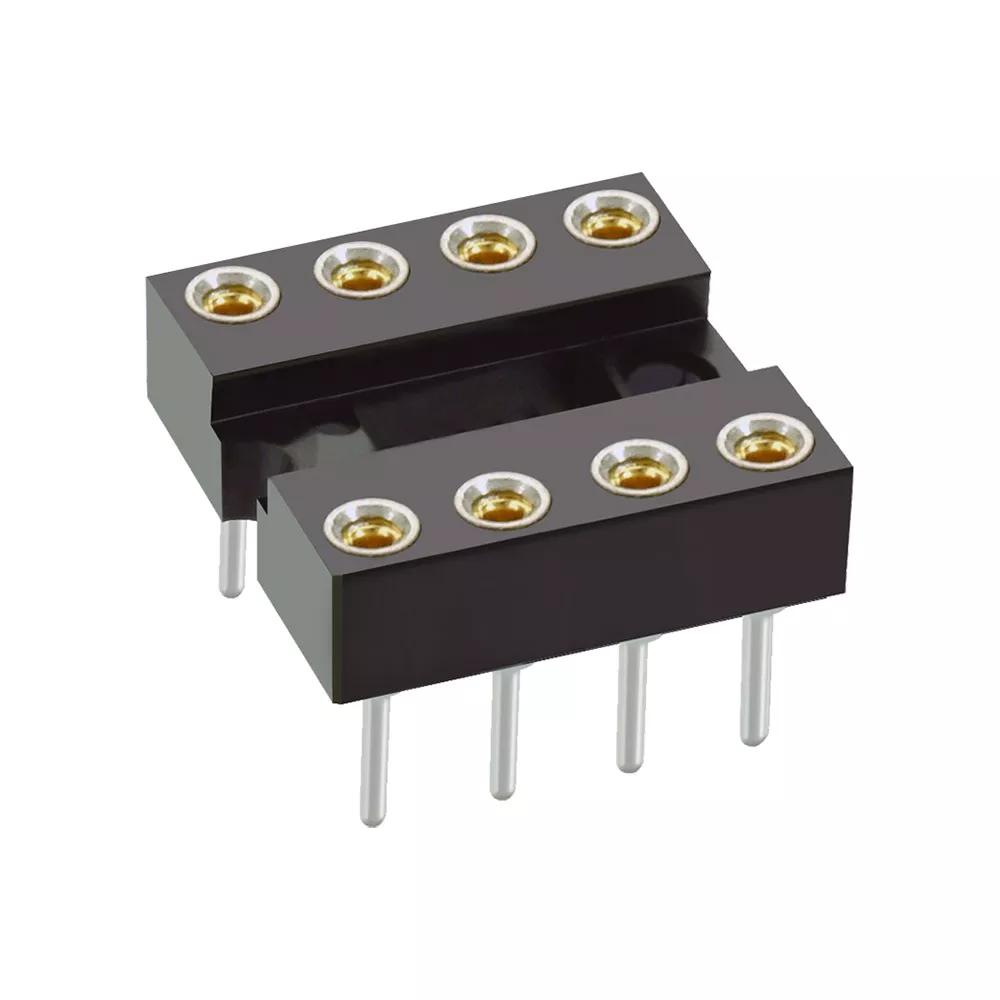

Sockets - 2.54mm Pitch IC Dual Row Connector
PC Tail IC Female/Socket Connector - 8 x contacts in a dual row format. Gold finish on contact area, Tin finish on termination.
7.62mm (0.3") spacing between rows, and 2.54mm (0.1") contact pitch on each row.
Suitable for a Ø0.40-0.56mm mating pin.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
Yes
Mating Pin Size:
Ø0.5mm
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
CH
Side Stackable:
Yes
Number of Signal Contacts:
8
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
1A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PCT
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
2.54mm (0.1")
Weight:
0.547g
Dimensions:
10.10 x 10.02 x 7.40
PC Tail Length:
3.20mm
Height of Connector above PCB:
4.20mm
Downloads
Technical Drawing / Datasheet - D2XXX.pdf
C004XX Component Specification - 2.54mm pitch Round Pin IC Sockets and Headers
Outgassing data for Harwin products (plastics)
RoHS - D2808-42
Material composition for D27XX + D28XX + D29XX series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
