Sockets - Individual Throughboard PCB Socket

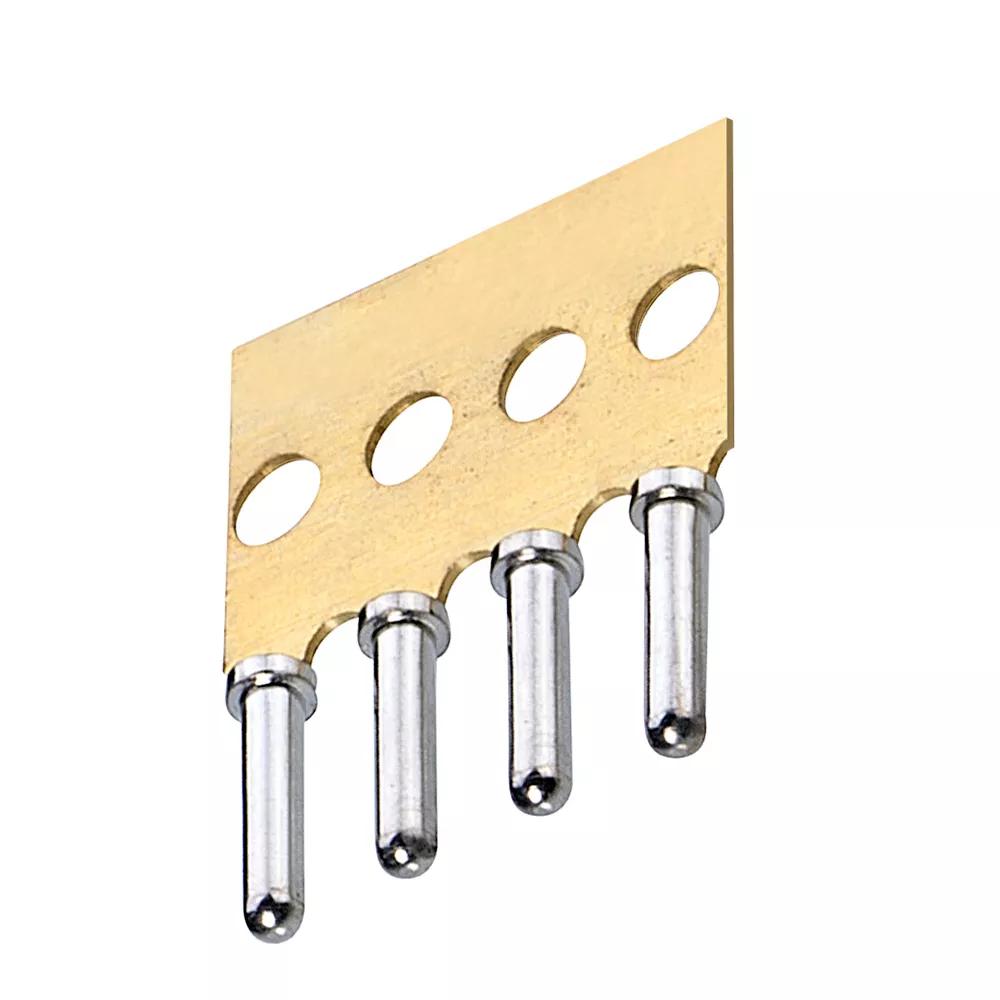

Strip of 4 Sub-Miniature H3191-01 Sockets on a metal carrier comb.
Gold finish on contact area, Tin finish on termination. 2.54mm (0.1") pitch on strip.
Sockets suitable for a Ø0.46-0.51mm mating pin.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
Entry Style:
Top Entry
Mating Pin Size:
Ø0.5mm
Number of Rows:
1
Connector Orientation:
Vertical
Country of Origin:
GB
Number of Signal Contacts:
4
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
2A max at 25°C, 1.75A max at 85°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Cuttable:
Yes
Materials
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Packaging Style:
Tube
Finish / Plating on Termination:
100% Tin over Nickel
Dimensions
Contact Pitch:
2.54mm (0.1")
Weight:
0.213g
Dimensions:
9.42 max x 1.42 x 11.85
PC Tail Length:
4.47mm
Height of Connector above PCB:
0.38mm
Downloads
Technical Drawing / Datasheet - D01-982.pdf
C006XX Component Specification - Sub-miniature PC Board Sockets (for 0.5mm pins)
Outgassing data for Harwin products (plastics)
RoHS - D01-9820401
Material composition for D01-982 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
