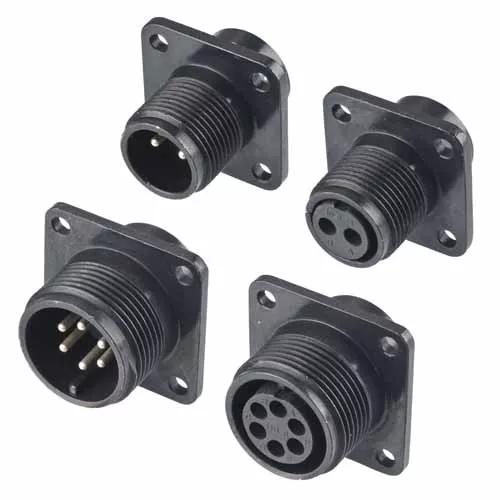

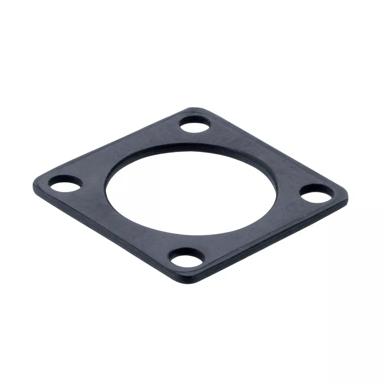

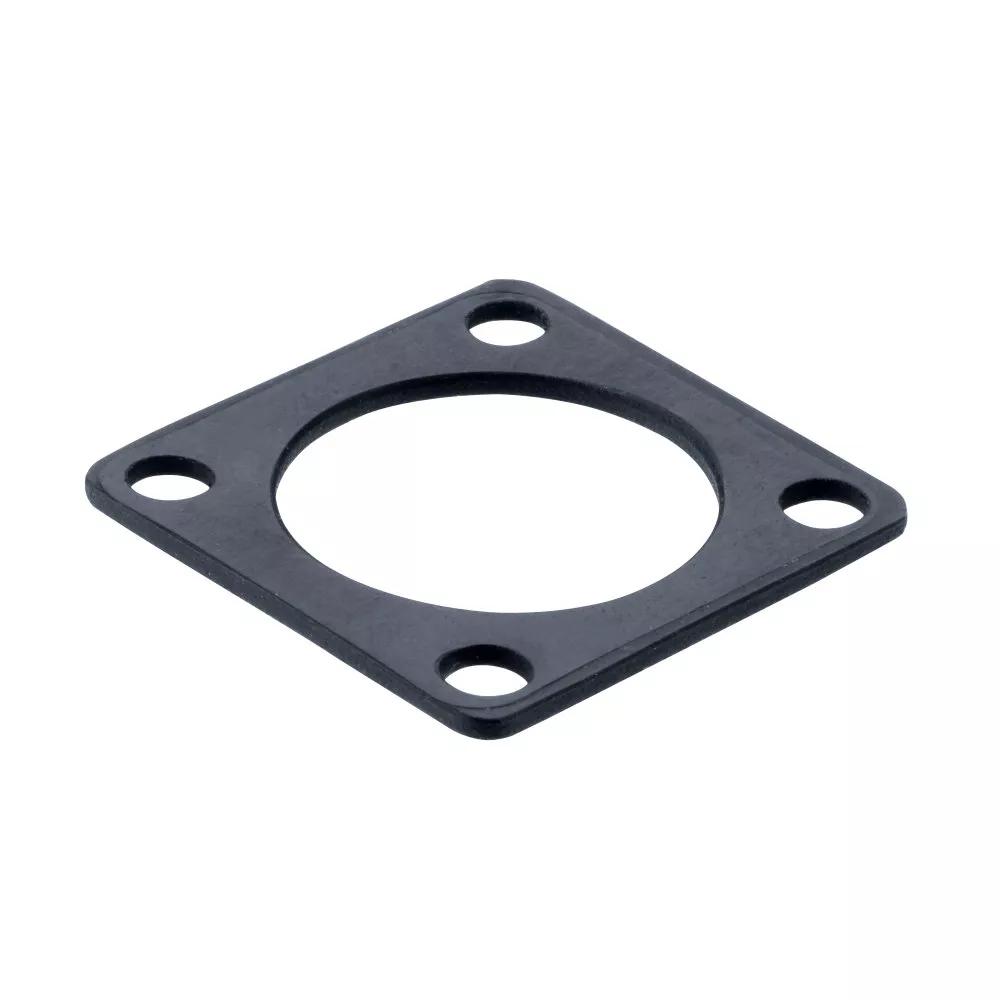

RoHS Compliant version of MIL-DTL-5015 (MIL-C-5015) Circular Connectors, sealed to IP67.
Receptacle shell, 2 x Female contacts for 16-22 AWG cable. Silver finish on contact area and solder termination.
For complete pin numbering or pin out information, see Component Specification C045XX.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Mating Pin Size:
Ø1.6mm
Connector Orientation:
Straight
Country of Origin:
IN
Number of Power/Coax Contacts:
2
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
13A per contact
Polarised:
Yes
Materials
Finish / Plating on Contact Surface:
Silver
Housing Material:
Aluminium Alloy
Base Material of Contact:
Copper Alloy
Packaging Style:
Single Pack
Finish / Plating on Termination:
Silver
Housing Colour:
Black
Dimensions
Weight:
16.2g
Dimensions:
25.48 x 27.80 sq.
Thread Size:
3/4-20UNEF
Wire Size:
16 AWG18 AWG20 AWG22 AWG
Downloads
Technical Drawing / Datasheet - C90-3102R.pdf
C045XX Component Specification - C90 Circular Connectors (MIL-DTL-5015 style connectors)
Product Training Module - Overview of the C90 RoHS Circular Connector range + designed to MIL-DTL-5015
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-54 - C90 Circular Connectors Assembly Instruction Sheet
